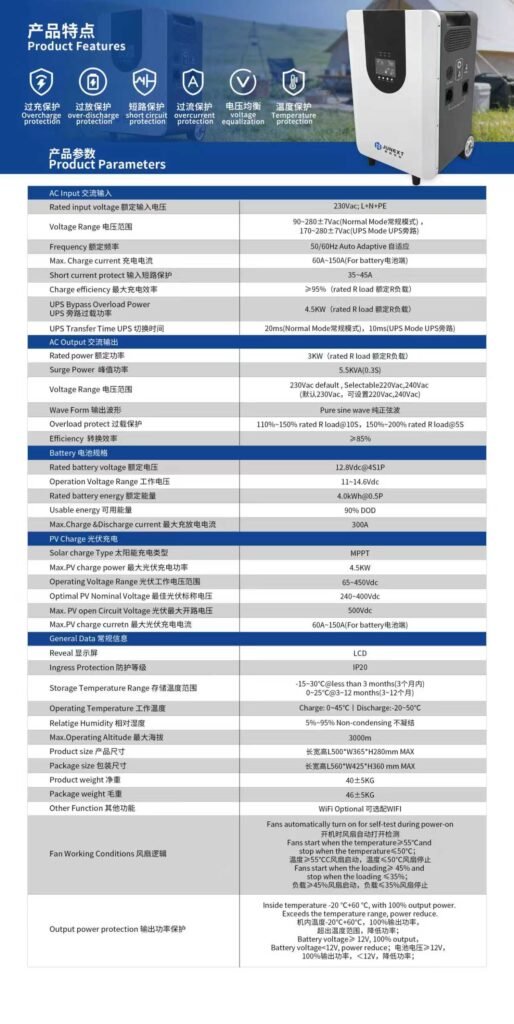

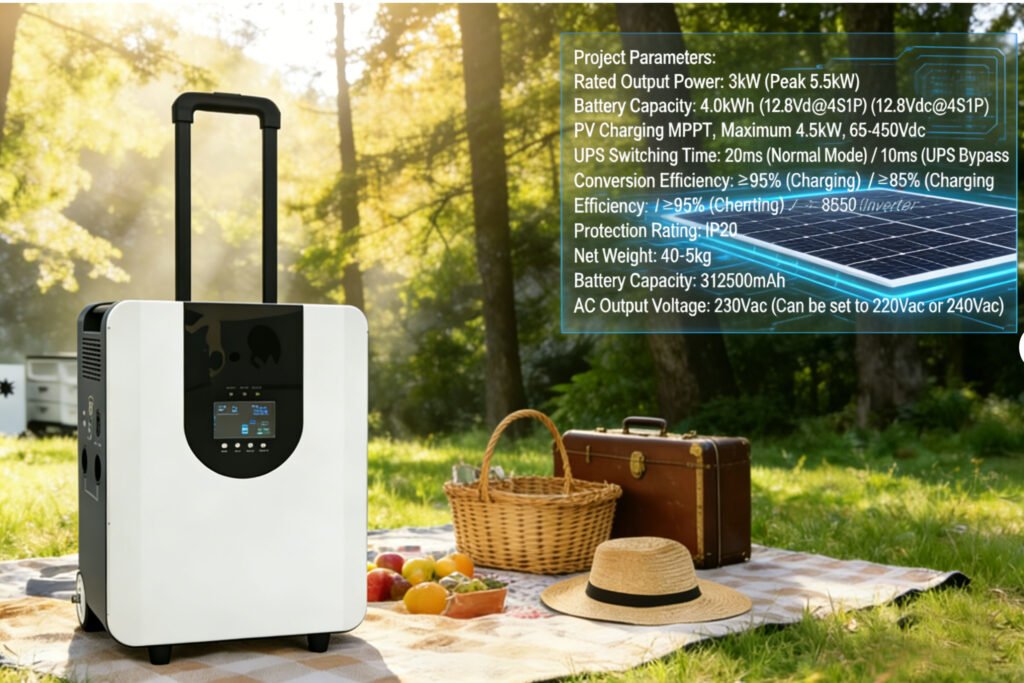

Project Parameters

Rated Output Power: 3kW (Peak 5.5kW)

Battery Capacity: 4.0kWh (12.8Vdc@4S1P)

PV Charging MPPT, Maximum 4.5kW, 65-450Vdc

UPS Switching Time: 20ms (Normal Mode) / 10ms (UPS Bypass)

Conversion Efficiency: ≥95% (Charging) / ≥85% (Inverter)

Protection Rating: IP20

Net Weight: 40±5kg

Battery Capacity: 312500mAh

AC Output Voltage: 230Vac (Can be set to 220Vac or 240Vac)
